Three way switch wiring lets you turn one light on or off from two places, such as the top and bottom of a staircase or both ends of a hallway. It confuses more people than any other switch because the wire colors don’t tell the whole story: the one wire that matters most, the common, can be black, red or a taped white. This guide explains how the circuit works, shows the standard layout in a diagram, lists the mistakes behind most 3-way problems, and marks the point where a switch swap becomes a wiring job.
Key Takeaways
- A 3-way switch has three screws plus ground: one darker common screw and two brass traveler screws. The common wire must go back on the common screw.
- Two traveler wires link the two switches. The light is on only when both switches connect to the same traveler.

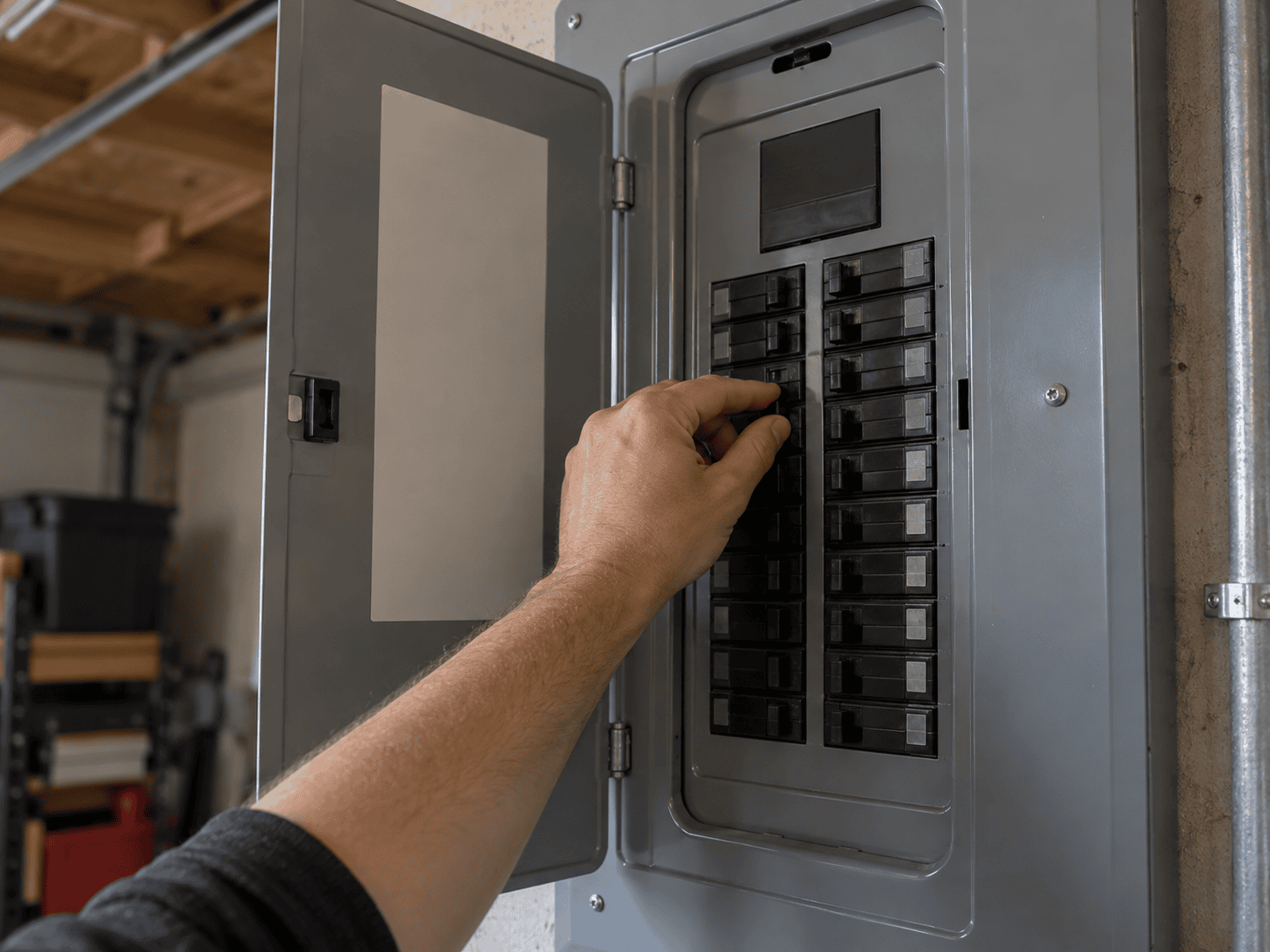

- Before disconnecting anything, turn the breaker off, confirm the wires are dead with a tester, and photograph or label the common wire.
- Most smart 3-way switches need a neutral wire in the box. Newer code requires one at switch locations; many older South Bay homes don’t have it.
- In San José, replacing a switch is permit-exempt; adding or rerouting wiring is not.
On This Page
- How a Three Way Switch Works
- Three Way Switch Wiring Diagram: Power at the First Switch
- Common Three Way Switch Wiring Mistakes
- Light Switch Not Working? Troubleshooting a 3-Way Circuit
- Frequently Asked Questions
- Book Switch and Wiring Repair in San Jose and the South Bay
How a Three Way Switch Works
A 3-way switch is a single-pole, double-throw switch: instead of breaking the circuit, it moves the connection from one wire to another.
Each 3-way switch has a common terminal, usually the darker or black screw, and two traveler terminals, usually brass. At one switch, the common connects to the incoming power. At the other, the common connects to the wire running to the light. Between them run two travelers. Each switch picks one traveler, and power only reaches the light when both switches have picked the same one.
Both switches on the same traveler completes the circuit. Flip either one and the circuit breaks.
That’s why a 3-way switch has no ON or OFF printed on the toggle. Up or down only means which traveler it’s connected to.
Three Way Switch Wiring Diagram: Power at the First Switch
The most common layout brings power into the first switch box, runs a 3-wire cable between the switches, and sends the switched hot from the second switch to the light. Purdue Extension’s wiring sheet shows several other ways the same circuit can be laid out, including power arriving at the light first.
Standard three way switch wiring with power entering at the first switch box.
- Switch box 1: the black hot from the breaker goes on the common screw. The black and red wires of the 3-wire cable go on the two traveler screws, in either order.
- Switch box 2: the same black and red travelers go on the two traveler screws. The black wire to the light goes on the common screw.
- Neutrals: the white wires are spliced together in each box and never touch a switch. They carry through to the light.
- Grounds: all bare or green wires are joined, with a short pigtail to each switch’s green screw and to the fixture.

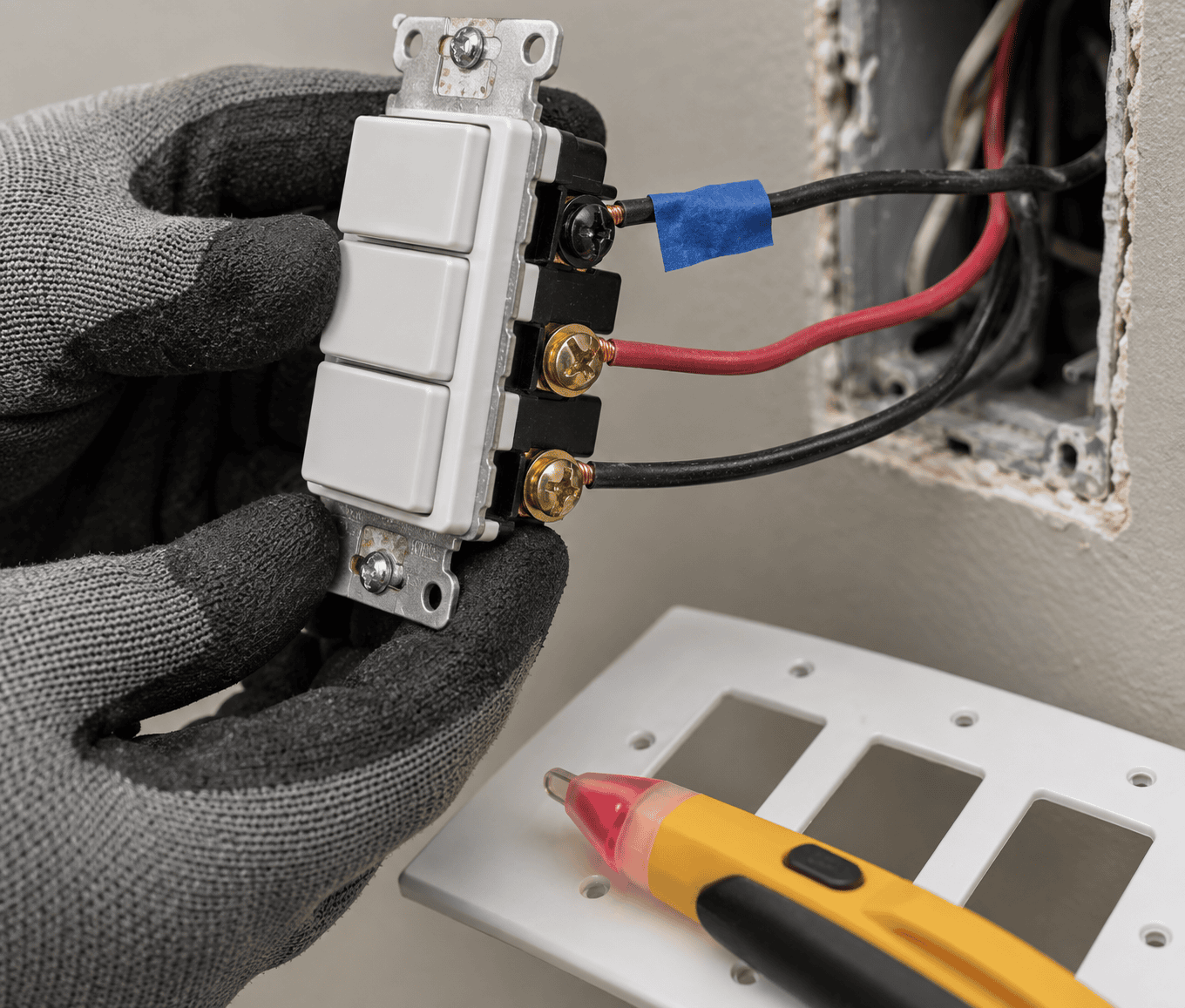

If you’re replacing a 3-way switch, you don’t need to work out the layout from scratch. Find the wire on the old switch’s common screw, mark it with tape before you remove it, and put it on the common screw of the new one. The other two go on the travelers.
Common Three Way Switch Wiring Mistakes
Almost every 3-way problem comes down to one of these:
- Common on the wrong screw. The most frequent mistake by far. The light then works only in some switch combinations, or only from one location.
- Trusting wire color. In older homes, a white wire is sometimes used as a hot or traveler, ideally wrapped in black tape. Go by which screw a wire was on, not by its color.
- Removing both switches at once. Replace one switch at a time so the other still shows you where the common goes.
- Backstab connections. The push-in holes on the back of cheap switches loosen over time. Use the screw terminals.
- Using a single-pole switch. A standard two-screw switch can’t swap between travelers, so one location stops working.
- Using the ground as a neutral. Smart switches need a neutral to power their electronics. Connecting that lead to the bare ground wire is not allowed and isn’t safe.
The neutral issue catches a lot of smart-switch upgrades. EC&M’s summary of the NEC switch rules explains that newer code requires a neutral at switch locations in rooms, hallways and stairways, but only at one of the switches when both can see the whole space, and that older boxes wired before the rule can be exempt where a neutral can’t be added without opening finished walls. Many South Bay houses built between the 1950s and the 1990s fall into that last group, so check the box before you buy the switch.
Light Switch Not Working? Troubleshooting a 3-Way Circuit
A light switch not working on a 3-way circuit is usually a bulb, a breaker, or a loose connection before it’s a bad switch.
| What happens | Most likely cause | What to check |
| Light works from one switch only in certain positions | Common wire on a traveler screw | Which wire sits on the dark screw at each switch |
| Light never comes on from either switch | Dead bulb, tripped breaker, or loose hot connection | Bulb, breaker, then the hot at the first box |
| Light flickers or cuts out when a switch is touched | Loose wire or worn switch | Screw terminals and backstab connections |
| Switch plate feels warm, buzzes, or smells hot | Loose or overheating connection | Stop. Breaker off and call for service |
Warm switch plates, buzzing and scorch marks point to connections that are loose or running hot, which is exactly what an electrical safety check for loose connections and overheating parts is meant to catch. Don’t keep flipping a switch that’s doing that.
Know where the DIY line sits. The City of San José’s permit rules exempt the repair or replacement of switch parts, so swapping a worn 3-way switch like-for-like doesn’t need a permit. Adding a new 3-way location, running new cable or moving a box does. If you’re opening walls anyway, switch wiring during a remodel or rewire is the time to add a neutral and a second switch location properly.
Frequently Asked Questions
Which wires go where on a 3-way switch?
The common wire goes on the darker common screw, the two traveler wires go on the two brass traveler screws, and the ground goes on the green screw. At the first switch the common is the incoming hot; at the second, it’s the wire to the light. Travelers are interchangeable, so their order on the brass screws doesn’t matter.
What happens if a 3-way switch is wired wrong?
Usually the light works only in some switch combinations, from one location only, or not at all. Those symptoms almost always mean the common wire has ended up on a traveler screw. A wrongly wired switch that buzzes, feels warm or trips the breaker is a different problem: turn the breaker off and have it checked.
Do 3-way switches need a neutral wire?
A standard mechanical 3-way switch doesn’t use the neutral; the neutral is spliced through the box. Most smart 3-way switches do need one to power their electronics. Current code calls for a neutral at switch locations in most living spaces, but older homes often lack one, so check the box before buying a smart switch.
Do I need 12/3 or 14/3 wire for a 3-way switch?
You need 3-wire cable between the two switches, because it has to carry two travelers plus a neutral. The gauge must match the circuit: 14-gauge (14/3) on a 15-amp breaker, 12-gauge (12/3) on a 20-amp breaker. Never put smaller wire on a larger breaker. Check the breaker before buying cable.
Book Switch and Wiring Repair in San Jose and the South Bay
Label the common, swap one switch at a time, and trust the screw positions over the wire colors. If the box has scorch marks, no neutral for the smart switch you bought, or you want a switch where there isn’t one, that’s a wiring job. Proper Hour Home Service handles electrical repairs and switch replacements seven days a week, 8 a.m. to 8 p.m., across San Jose, Santa Clara, Los Gatos, Fremont, San Mateo and San Bruno. Schedule an electrical visit or use the call button at the top of the page.
